Alchemy Ink Technology

ACI Alchemy Conductive Inks are changing the game for additive manufacturing of flexible electronics.

Download Product List

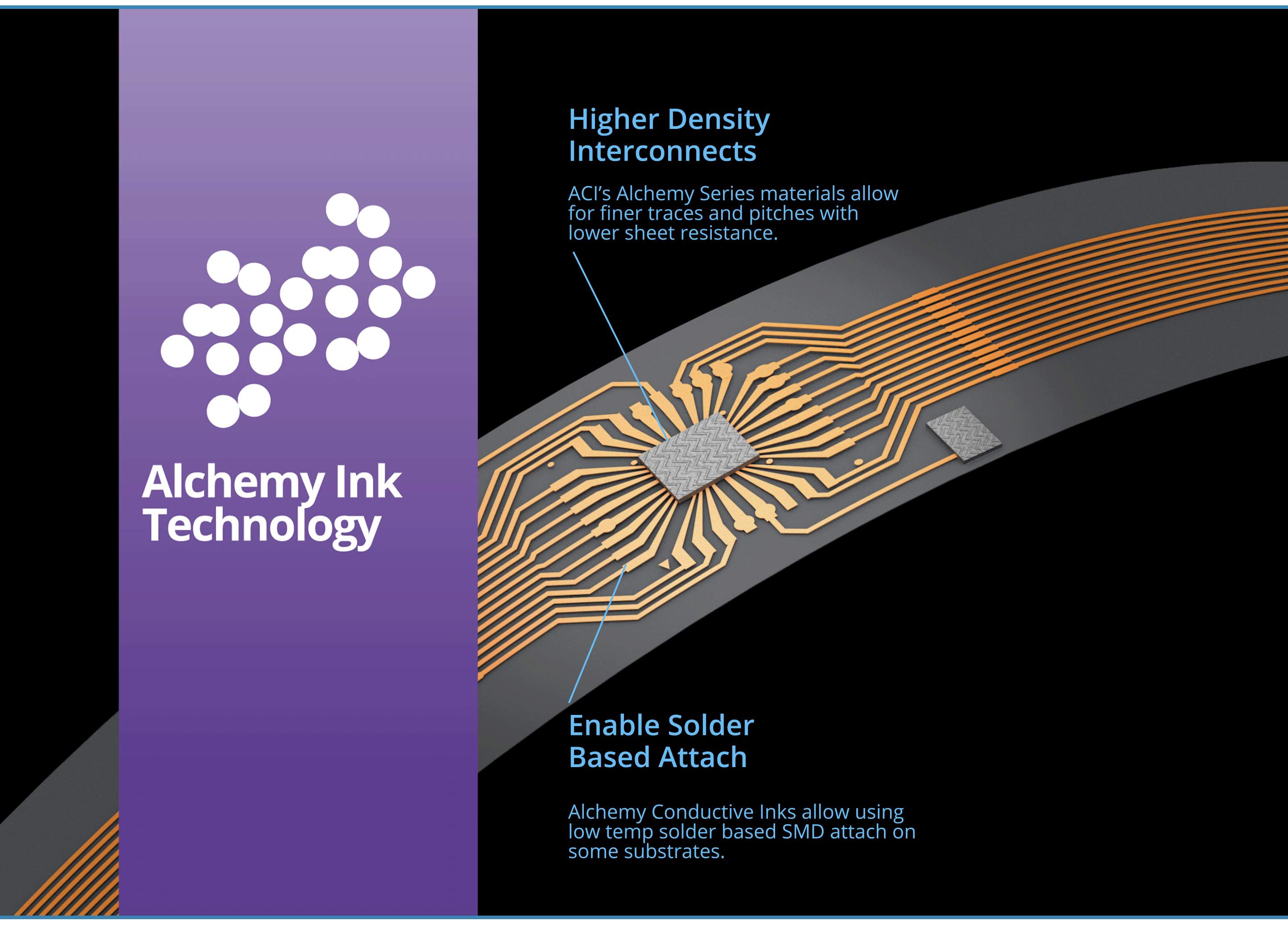

Top-Application-Alchemy-2

ACI Alchemy Ink Technology

PERCOLATION

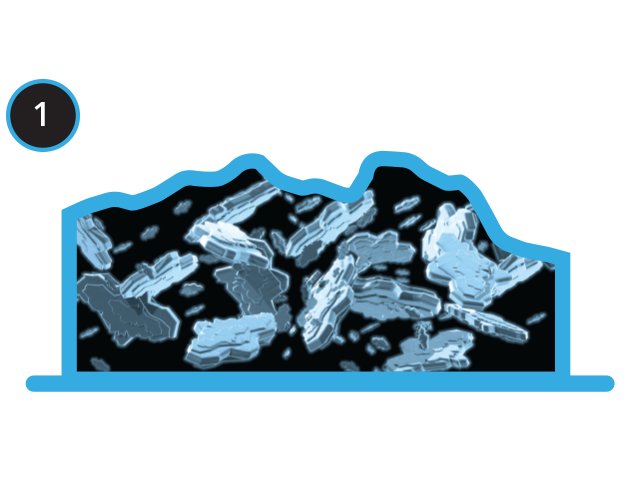

Percolation-1A

Wet as Printed

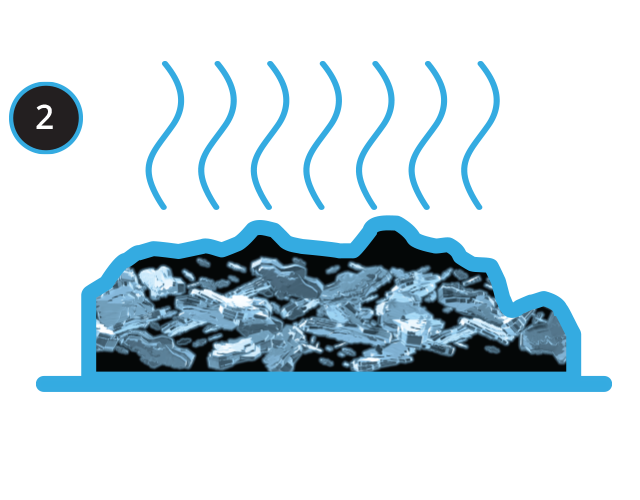

Percolation-2A

After Drying

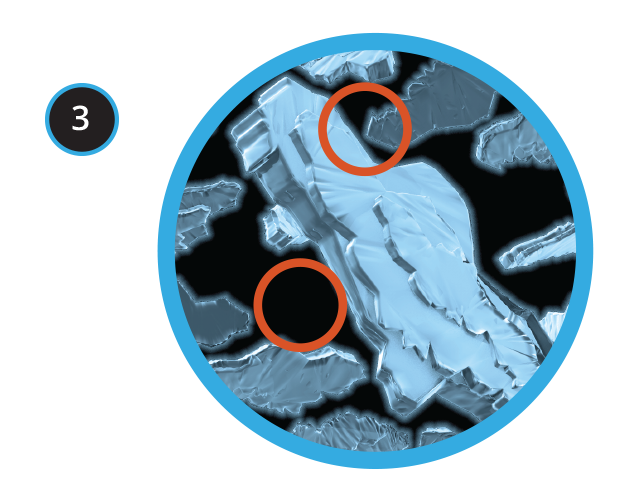

Percolation-3A

Result

Polymer and “lubricants” from flaking create contact “resistance”. Resin at substrate interface provides adhesion.

Visit the R&D Page for More on Alchemy Inks

SINTERING

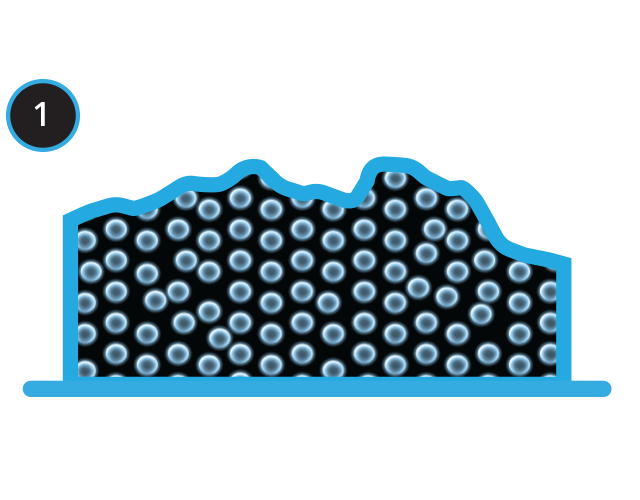

Sinterabe-1A

Wet as Printed

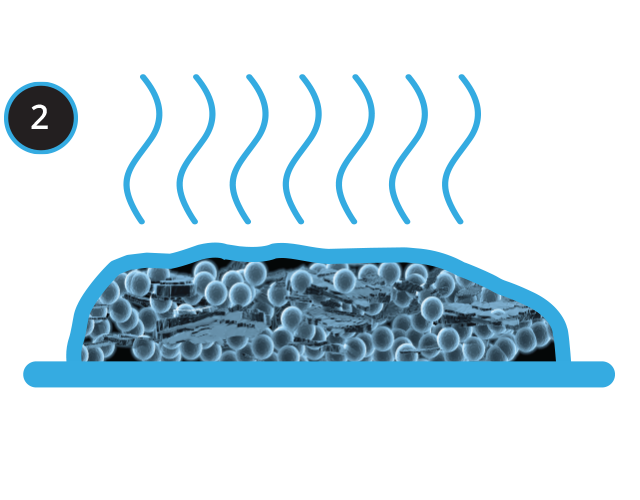

Sinterable-2A

After Drying

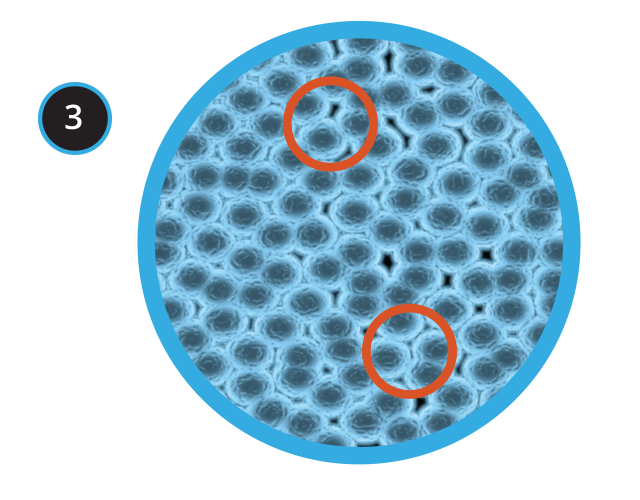

Sinterable-3A

Result

Sintering yields no contact resistance. Difficult to get resin to substrate without hurting resistivity.

SEMI-SINTERING

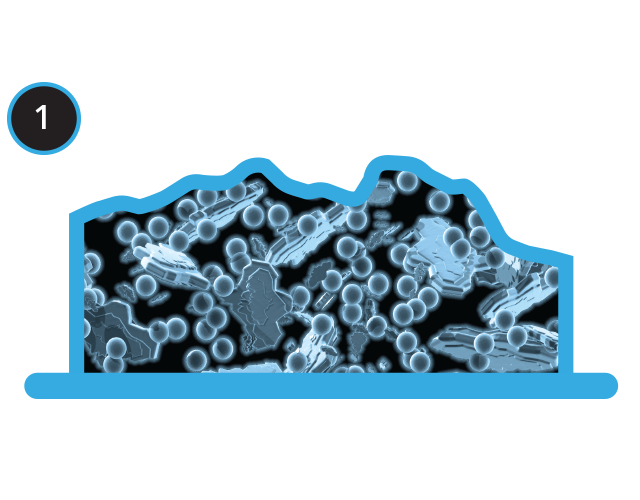

Semi-Sinterable-1A

Wet as Printed

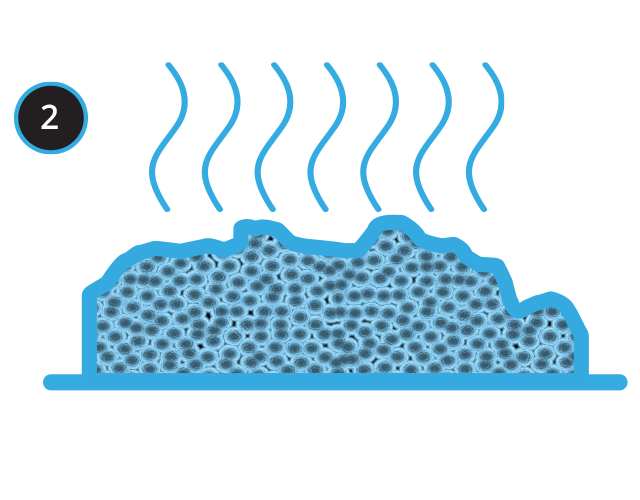

Semi-Sinterable-2A

After Drying

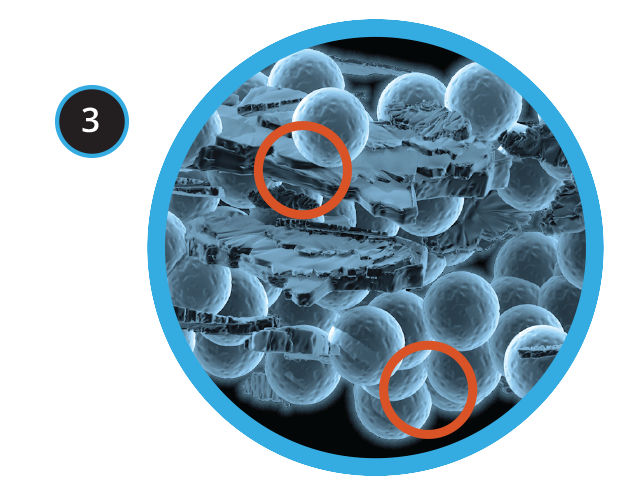

Semi-Sinterable-3A

Result

Some sintering between particles and high aspect flakes. Higher resin content than pure nano sintering materials yield superior adhesion.

ACI Alchemy Conductive Inks

ACI Materials has developed a new series of semi sinterable and sinterable conductive inks which demonstrate a unique combination of capabilities
  • Lower sheet resistance than PTF, nanoparticle, and metal complex based inks
  • Faster cure times than traditional nanoparticle based sinterable inks
  • Nano like volume resistivity (conductivity), but in less time
  • Superior hard crease survivability compared to even PTF inks
  • Allow high resolution printing without compromising resistivity and sheet resistance
  • Enables reflow soldering using solder pastes
  • Thinner EMI shielding coatings

FS0117

Semi-Sintering Conductive Ink

Learn More

FS0142

Semi-Sintering Conductive Ink

Learn More
